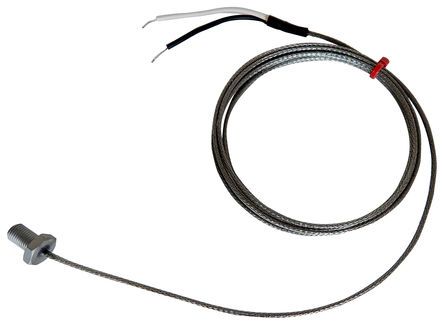

IEC-Bolzen-Thermoelement, Glasfaser-Edelstahl ber geflochtenem Kabel - Typ K, J
Währung ändern
SKU
XE-5557
25,43 €
21,19 €
Bolzensensoren werden in der Regel in die Oberflche eingeschraubt, was in der Regel die Reaktionsgeschwindigkeit und die Empfindlichkeit der Messung erhht. Geeignet fr den Einsatz bis +250C.
| Thermoelementtyp | K or J |
|---|---|
| Thermocouple Junction | Bolts have grounded junctions |
| Kabellänge | 2m |
| Kabelart | Glassfibre stainless steel over braided cable |
| Cable Termination | Bare tails |
| Max. Temperatur | +250°C |
| Bolt thread/pitch | M8 x 1mm / M10 x 1mm / M12 x 1mm |
