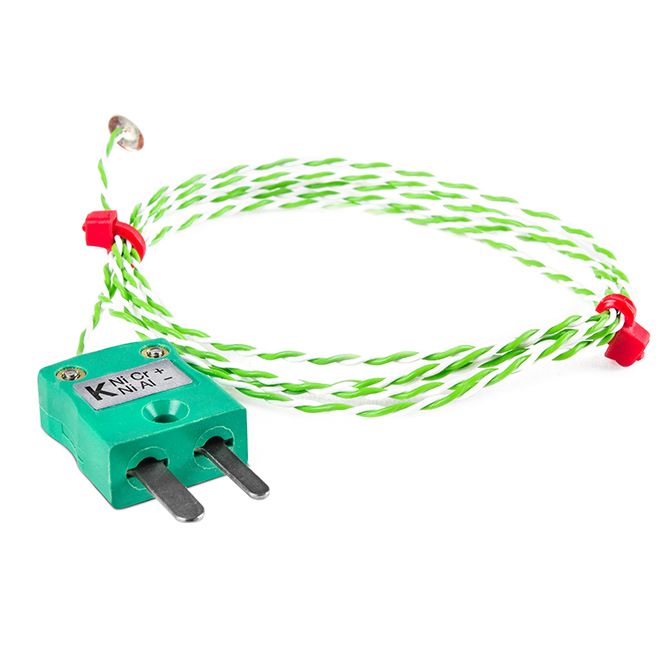

IEC Feindraht-Scheiben-Thermoelement, PTFE mit Miniaturstecker - Typ K,J
Währung ändern
SKU
XE-5620
18,82 €
15,68 €
Hochtemperatur-Klebestreifen (13x18mm x 5) fr eine schnelle und einfache Befestigung an der Oberflche/dem Prozess. Kupferscheibe, 6,35 mm Durchmesser x 0,3 mm Dicke.
| Allgemeine Beschreibung | Exposed junction thermocouple with Copper Disc brazed at tip |
|---|---|
| Sensorart | Copper disc |
| Thermoelementtyp | Type ‘K’ or ‘J’ IEC, Type 'K' BS |
| Thermocouple Junction | Grounded measuring junction |
| Kabellänge | 1 or 2 metre |
| Kabelart | 1/0.2mm PTFE insulated twisted wire |
| Abschlussart | Miniature flat pin plug, colour coded in accordance IEC 584 |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
