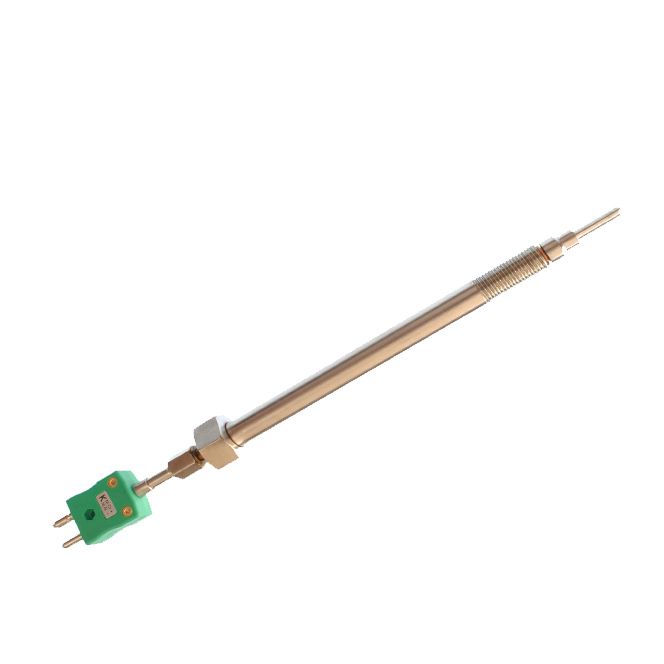

IEC Twist Melt Bolt Thermoelement - Typ K, J
Währung ändern
SKU
XE-5531
174,17 €
145,14 €
| Allgemeine Beschreibung | Rotational blade style tip allowing correct positioning for reduced resistance in the melt flow |
|---|---|
| Sensorart | Widely used in plastics extruders and injection moulders |
| Thermoelementtyp | K or J |
| Sondenlänge | 152mm stem length |
| Mantelmaterial | Stainless steel bolt with 1/2”UNF-20 2A thread |
| Abschlussart | Standard plug termination (round pin) |
| Max. Temperatur | +400°C |
| Toleranz | Tolerance & colour code in accordance with IEC-584 specification |
| Thread | 1/2”UNF-20 2A thread |
| Tip | 20mm long blade tip immersion length |
