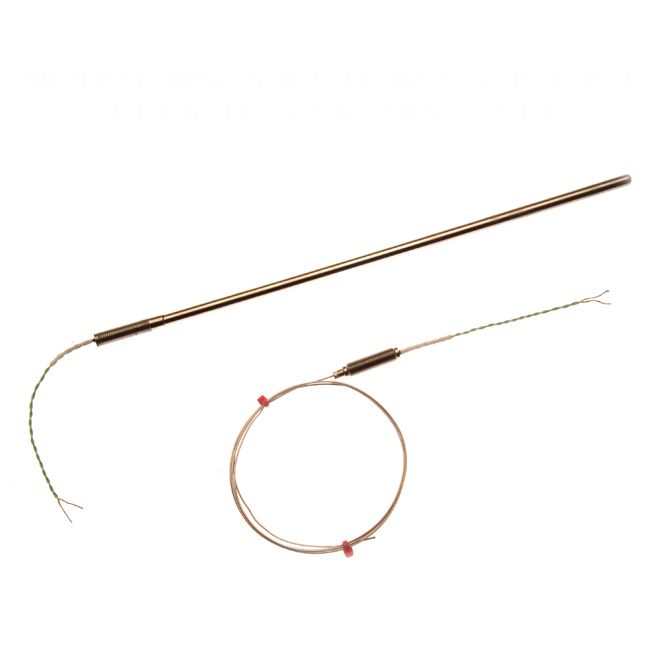

Mineralisoliertes Thermoelement mit Gewindetopf und 100 mm PFA-isoliertem, doppelt verdrilltem IEC-Kabel - Typen K, J, T, N
Währung ändern
Mineralisoliertes Thermoelement in verschiedenen Lngen mit 100 mm, PFA-isoliert doppelt verdrillt IEC, 7/0,2 mm.
Mssen Sie Ihren Temperatursensor kalibrieren? | Labfacility ist auf ISO17025 (UKAS)-Kalibrierstandards rckfhrbar und bietet die Wahl zwischen einer 3- oder 5-Punkt-rckfhrbaren Kalibrierung mit unserer hauseigenen Kalibriereinrichtung. Bitte beachten Sie, dass Sie bezglich der Lieferinformationen kontaktiert werden, wenn Sie Ihrer Bestellung eine Kalibrierungsoption hinzufgen. |
|---|
Leistungsbeschreibung
| Allgemeine Beschreibung | Mineral insulated thermocouple in various lengths terminatied with 100mm,PFA insulated twin twisted IEC,7/0.2mm. |
|---|---|
| Sensorart | Mineral Insulated |
| Thermoelementtyp | K,J,T,N |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Sondendurchmesser | 1.0, 1.5, 3.0, 4.5 & 6.0mm |
| Sondenlänge | 150, 250, 500, 1000, 1500 & 2000mm |
| Mantelmaterial | K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil |
| Topftyp | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Kabellänge | 100mm |
| Kabelart | PFA insulated twin twisted IEC |
| Kern / Stränge | 7/0.2mm |
| Abschlussart | Bare tails |
| Max. Temperatur | K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C. |
| Mindest. Temperatur | K -40°C, J -100°C, T -100°C, N -100°C |
| Normen erfüllt | In accordance with IEC 584 |
