Miniatur-Thermoelement-Steckverbinder mit rechteckiger Blende AM-K-FF Typ K ANSI
Währung ändern
- Buy 2 - 9 for 4,25 € 3,54 € each
- Buy 10 - 99 for 3,64 € 3,03 € each
- Buy 100+ for 3,41 € 2,84 € each

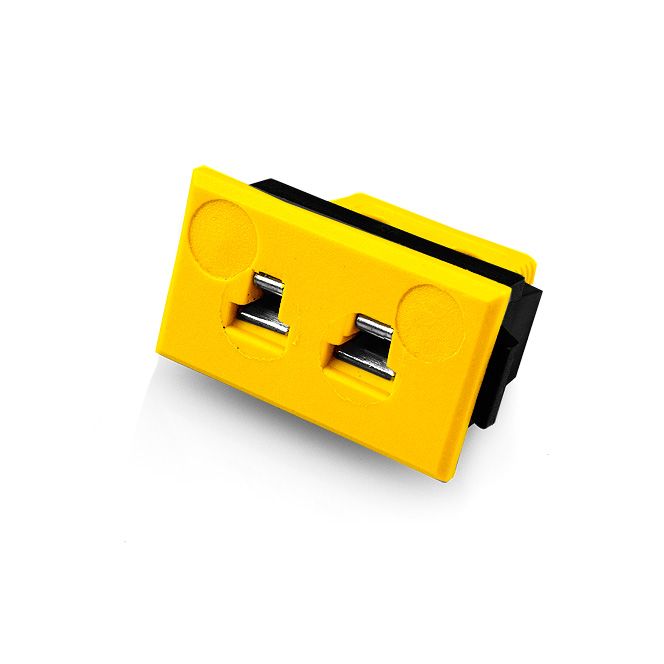

Miniatur Rechteck Thermoelement Steckverbinder Blende Buchse AM-K-FF Typ K ANSI
Nylonclip fr eine schnelle und einfache Befestigung an der Platte. Alle Blenden-Montagesockel sind mittels ungleich groer Stifte polarisiert
Leistungsbeschreibung
| Allgemeine Beschreibung | All fascia mounting sockets are polarised by means of unequally sized pins |
|---|---|
| Thermoelementtyp | K ANSI |
| Steckertyp | Fascia mounting socket |
| Steckergröße | Miniature |
| Farbe | Yellow |
| Maße | See Schematic Drawing (Product Literature Tab) |
| Max. Temperatur | 120°C |
| +Positiver Kontakt | Nickel Chromium |
| -Negativer Kontakt | Nickel Alloy |
| Normen erfüllt | BS EN 50212:1997. RoHS |
3D Animation of Miniature ANSI Thermocouple Connector Fascia Socket From Labfacility
Miniature Rectangular Fascia Socket ANSI *Panel mounting *Clip for quick, simple fixing to panel *Max temperature 120 deg C About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
