Miniatur-Thermoelement-Stecker & Buchse BM-K-M+F Typ K BS

Währung ändern

SKU
XE-1385-001
8,22 € 6,85 €
  • Buy 2 - 9 for 7,00 € 5,83 € each
  • Buy 10 - 99 for 5,95 € 4,96 € each
  • Buy 100+ for 5,60 € 4,67 € each
Vorlaufzeit:
In-Stock
Gewicht:
12g
Tarif-Code:
85369010
Manufacturer:
Labfacility
Herstellungsland:
GB
RoHS-konform:
Product Compliance:
Postage & Delivery:

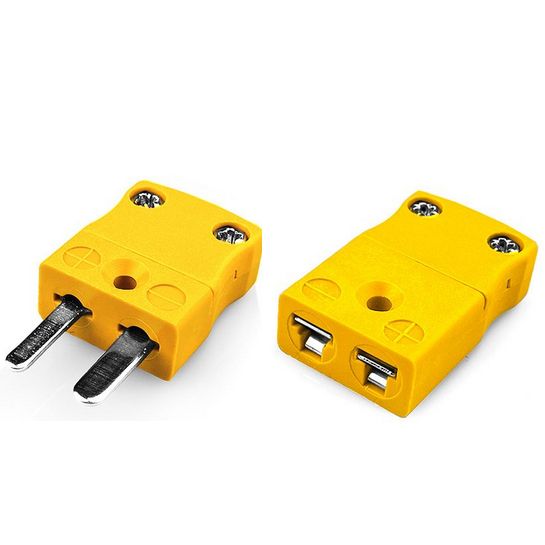

Miniatur-Thermoelement-Anschlussstecker und -Buchse BM-K-M+F Typ K BS

Mit flachen Stiften, die fr den Thermoelementtyp geeignet sind und sich ideal fr den allgemeinen Einsatz eignen, sind alle Kontakte polarisiert, um eine korrekte Verbindung zu gewhrleisten. Diese Steckverbinder nehmen Thermoelementkabel mit einem Durchmesser von bis zu 4 mm auf.

Spezifikationen

Allgemeine Beschreibung Ideal for general purpose use. Contacts are polarised to ensure correct connection
Thermoelementtyp K BS
Steckergröße Miniature
Steckertyp Plug & Socket
Farbe Yellow
Max. Temperatur 220°C
Stifte Flat Pins
+Positiver Kontakt Nickel Chromium
-Negativer Kontakt Nickel Alloy
Normen erfüllt BS EN 50212:1997. RoHS

3D Animation of Miniature IEC Thermocouple Connector Plug From Labfacility

Miniature Thermocouple Plug IEC *Miniature connector with flat plug pins. *Contacts are polarised to prevent incorrect connection. *Connectors will accept thermocouple cable up to 4mm diameter. *Cable clamps available for securing cable to plugs. *Max temperature 220 deg C. About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com


3D Animation of Miniature IEC Thermocouple Connector Socket From Labfacility

Miniature Thermocouple In-Line Socket IEC *Miniature socket with thermocouple contacts. *Socket ideal for general purpose use. *Contacts are polarised to prevent incorrect connection. *Cable clamps available for securing cable to sockets. *Max temperature 220 deg C. About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit www.labfacility.com
