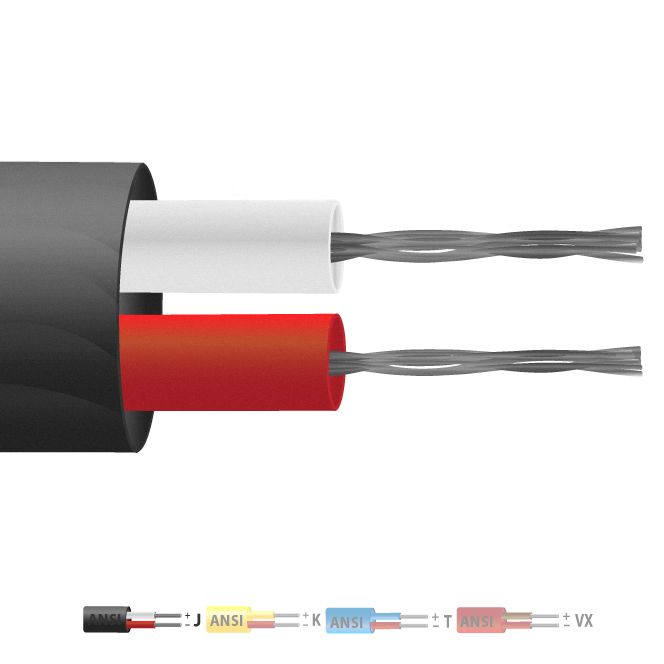

Typ J PVC-isoliertes Flachpaar-Thermoelementkabel / -draht (ANSI)
Währung ändern
SKU
XE-2806
6,85 €
5,71 €
Leistungsbeschreibung
| Allgemeine Beschreibung | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Kabellänge | 10, 25, 50, 100 & 200m |
| Kabelart | Flat pair construction |
| Kern / Stränge | 7/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.219 |
| Außenfarbe | Black |
| + Farbe | White |
| - Farbe | Red |
| Draht ablassen | No |
| Dämm Material | PVC Insulated |
| Schleifenwiderstand 7 / 0,2 (Ohm pro kombiniertem Meter) | 2.7 |
| Max. Temperatur | +105°C |
| Mindest. Temperatur | -10°C |
| + Dirigentin | Iron |
| - Dirigentin | Constantan |
| Bildschirm | No |
| Normen erfüllt | Colour code (cores & jacket) to ANSI MC96.1 |
| Thermoelementtyp | J |
| Toleranz | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
