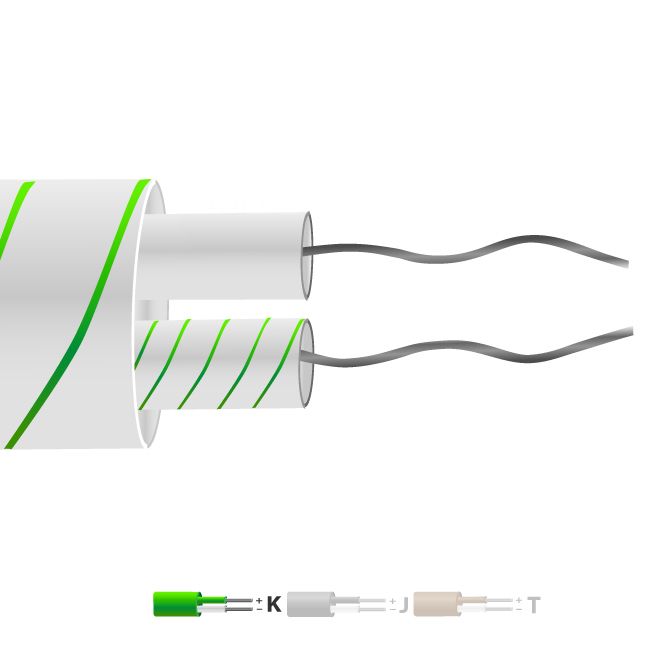

Typ K glasfaserisoliertes Flachpaar-Thermoelementkabel / -draht (IEC)
Währung ändern
SKU
XE-2163
6,83 €
5,69 €
Typ K glasfaserisoliertes Flachpaar-Thermoelementkabel / -draht (IEC)
Glasfaserisolierte Flachpaarkonstruktion, Leiter flach verlegt, Glasfaser mit Glasfaser gedmmt, Silikon durchgehend lackiert. Gute Temperaturbestndigkeit, aber nicht geeignet, wenn Flssigkeiten vorhanden sind.
| Allgemeine Beschreibung | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
|---|---|
| Kabellänge | 5m, 10m, 25m, 50m, 100m |
| Kabelart | Flat pair cable |
| Kern / Stränge | 1/0.3mm / 1/0.508mm / 7/02.mm / 1/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Leiterquerschnitt 7 / 0,2 (mm2) | 0.219 |
| Außenfarbe | Green & White |
| + Farbe | Green |
| - Farbe | White |
| Draht ablassen | No |
| Dämm Material | Glassfibre insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Schleifenwiderstand 7 / 0,2 (Ohm pro kombiniertem Meter) | 4.5 |
| Max. Temperatur | +350°C (short periods up to 400°C) |
| Mindest. Temperatur | -60°C |
| + Dirigentin | Nickel Chromium |
| - Dirigentin | Nickel Aluminium |
| Bildschirm | No |
| Normen erfüllt | Colour code (cores & jacket) to IEC-584-3 |
| Thermoelementtyp | K |
| Toleranz | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
