Typ K PFA-isoliertes Flachpaar-Thermoelementkabel / -kabel (IEC)
Währung ändern
SKU
XE-2133
8,23 €
6,86 €

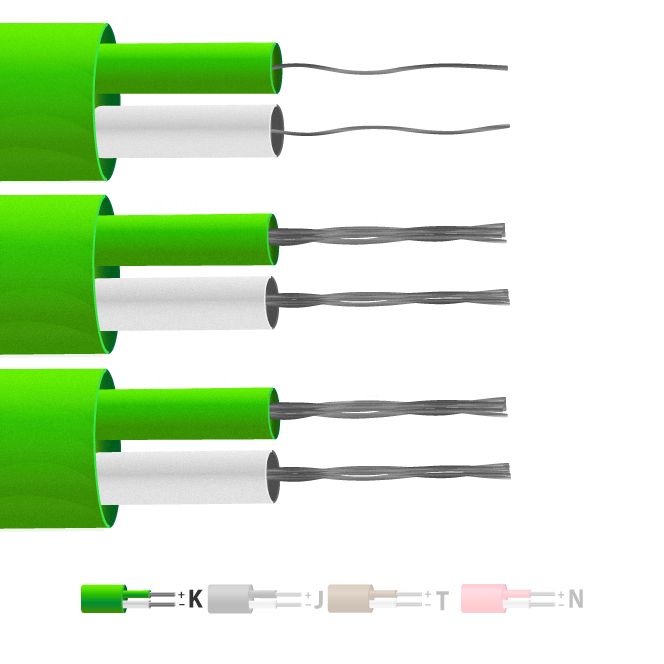

Typ K PFA-isoliertes Flachpaar-Thermoelementkabel / -kabel (IEC)
PFA-Teflon-isoliertes flaches Paar. PFA-Teflon hat eine gute mechanische Festigkeit und Flexibilitt, bestndig gegen le, Suren und andere schdliche Flssigkeiten, Gase, Dampf und Druck.
Leistungsbeschreibung
| Allgemeine Beschreibung | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments. |
|---|---|
| Kabellänge | 5m, 10m, 25m, 50m, 100m |
| Kabelart | Single pair of PFA insulated conductors, laid flat with PFA jacket |
| Kern / Stränge | 1/0.2mm, 1/0.315mm, 7/0.2mm, 1/0.508mm |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Leiterquerschnitt 7 / 0,2 (mm2) | 0.219 |
| Außenfarbe | Green |
| + Farbe | Green |
| - Farbe | White |
| Draht ablassen | No |
| Dämm Material | PFA Insulated |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Schleifenwiderstand 7 / 0,2 (Ohm pro kombiniertem Meter) | 4.5 |
| Max. Temperatur | +260°C |
| Mindest. Temperatur | -75°C |
| + Dirigentin | Nickel Chromium |
| - Dirigentin | Nickel Aluminium |
| Bildschirm | No |
| Normen erfüllt | Colour code (cores & jacket) to IEC-584-3 |
| Thermoelementtyp | K |
| Toleranz | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
