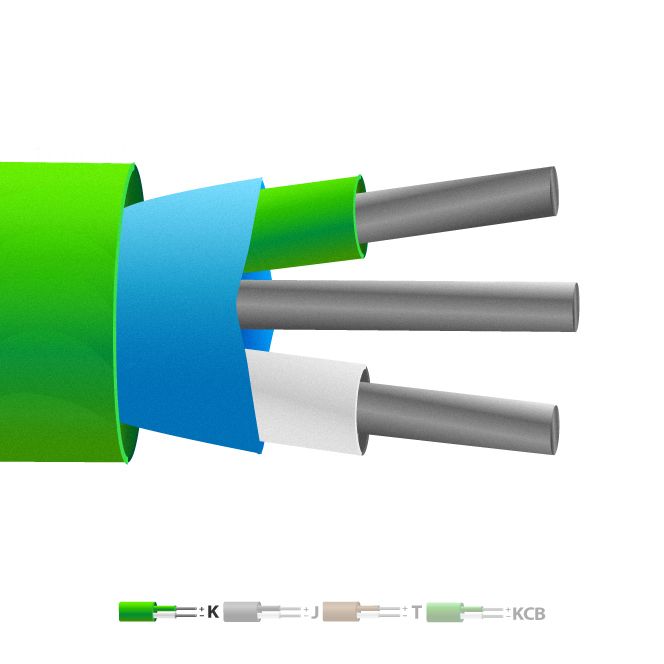

Typ K PVC-isoliertes Mylar-abgeschirmtes Thermoelementkabel / -draht (IEC)
Währung ändern
SKU
XE-2112
17,69 €
14,74 €
Leistungsbeschreibung
| Allgemeine Beschreibung | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Kabellänge | 10m, 25m, 50m, 100m, 200m |
| Kabelart | Twisted cores & screened construction for reduced electrical noise |
| Kern / Stränge | 7/0.2mm |
| Leiterquerschnitt 7 / 0,2 (mm2) | 0.219 |
| Außenfarbe | Green |
| + Farbe | Green |
| - Farbe | White |
| Draht ablassen | Yes |
| Dämm Material | PVC Insulated with a mylar screen |
| Schleifenwiderstand 7 / 0,2 (Ohm pro kombiniertem Meter) | 4.5 |
| Max. Temperatur | +105°C |
| Mindest. Temperatur | -10°C |
| + Dirigentin | Nickel Chromium |
| - Dirigentin | Nickel Aluminium |
| Bildschirm | Yes |
| Screen Type | Mylar |
| Normen erfüllt | Colour code (cores & jacket) to IEC-584-3 |
| Thermoelementtyp | K |
| Toleranz | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
