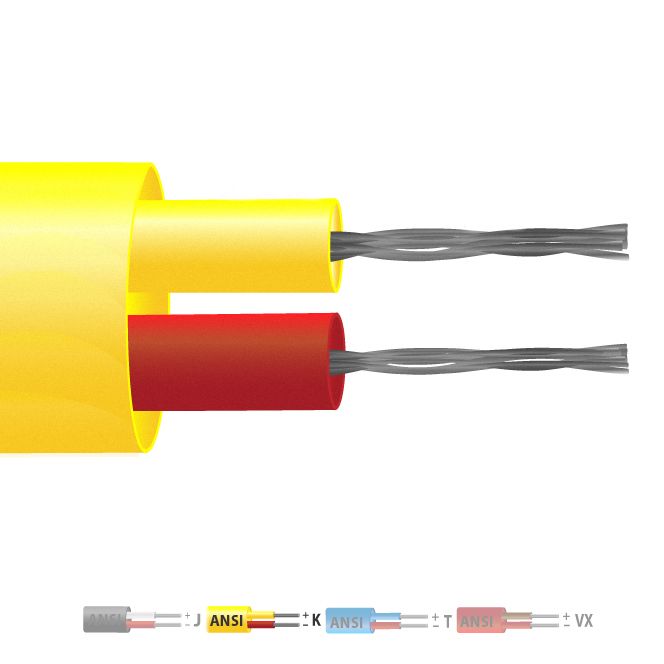

Typ K PVC-isoliertes Flachpaar-Thermoelementkabel / -draht (ANSI)
Währung ändern
SKU
XE-2807
16,33 €
13,61 €
Leistungsbeschreibung
| Allgemeine Beschreibung | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Kabellänge | 10, 25, 50, 100 & 200m |
| Kabelart | Flat pair construction |
| Kern / Stränge | 7/0.2mm |
| Leiterquerschnitt 7 / 0,2 (mm2) | 0.219 |
| Außenfarbe | Yellow |
| + Farbe | Yellow |
| - Farbe | Red |
| Draht ablassen | No |
| Dämm Material | PVC Insulated |
| Schleifenwiderstand 7 / 0,2 (Ohm pro kombiniertem Meter) | 4.5 |
| Max. Temperatur | +105°C |
| Mindest. Temperatur | -10°C |
| + Dirigentin | Nickel Chromium |
| - Dirigentin | Nickel Aluminium |
| Bildschirm | No |
| Normen erfüllt | Colour code (cores & jacket) to ANSI MC96.1 |
| Thermoelementtyp | K |
| Toleranz | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
