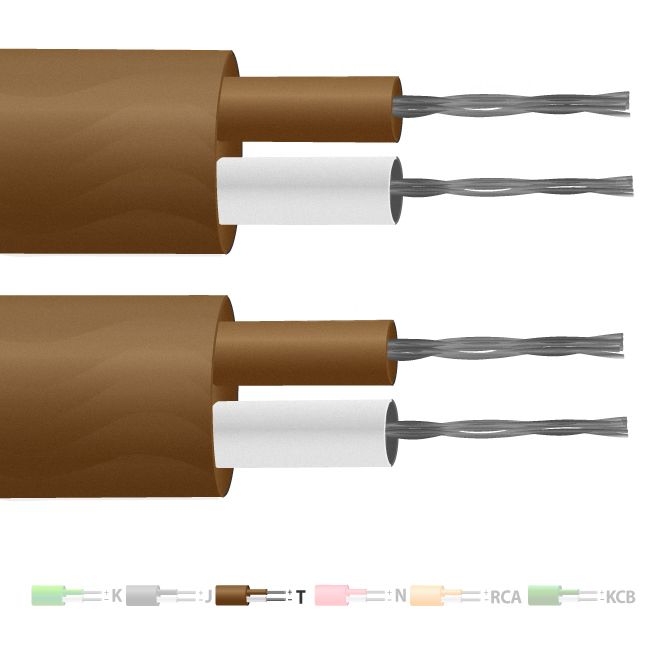

Typ T PVC-isoliertes Flachpaar-Thermoelementkabel / -draht (IEC)
Währung ändern
SKU
XE-2300
5,89 €
4,91 €
Leistungsbeschreibung
| Allgemeine Beschreibung | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Kabellänge | 10, 25, 50, 100 & 200m |
| Kabelart | Flat pair construction |
| Kern / Stränge | 7/0.2mm or 13/0.2mm |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Leiterquerschnitt 7 / 0,2 (mm2) | 0.219 |
| Leiterquerschnitt 13 / 0,2 (mm2) | 0.408 |
| Außenfarbe | Brown |
| + Farbe | Brown |
| - Farbe | White |
| Draht ablassen | No |
| Dämm Material | PVC Insulated |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 6.5 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 2.5 |
| Schleifenwiderstand 7 / 0,2 (Ohm pro kombiniertem Meter) | 2.3 |
| Loop Resistance 13/0.2 (Ohms per combined metre) | 1.2 |
| Max. Temperatur | +105°C |
| Mindest. Temperatur | -10°C |
| + Dirigentin | Copper |
| - Dirigentin | Constantan |
| Bildschirm | No |
| Normen erfüllt | Colour code (cores & jacket) to IEC-584-3 |
| Thermoelementtyp | T |
| Toleranz | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
