IEC Verstellbares Bajonett-Thermoelement, Glasfaser-Edelstahl-Kabel, umflochten - Typ K,J
Währung ändern
SKU
XE-3405
23,92 €
19,93 €

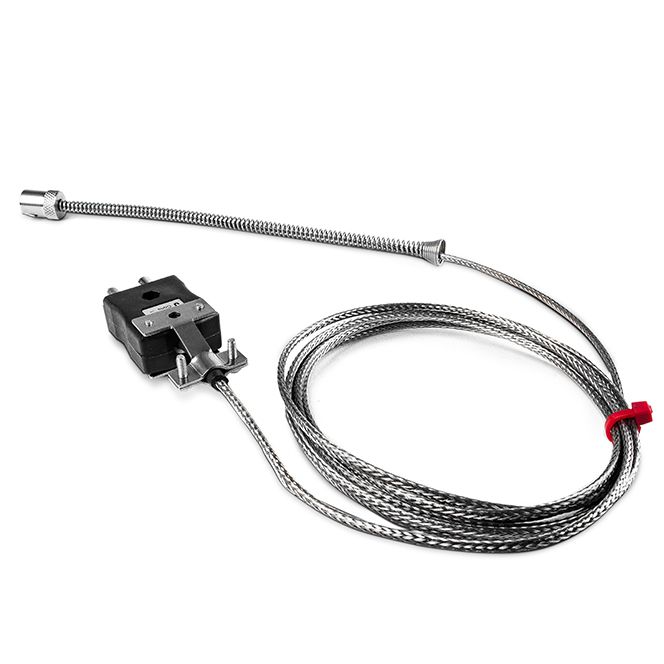

Einstellbares Bajonett-Thermoelement Typ K oder J IEC & Typ J BS
Verstellbares Bajonett-Thermoelement mit 200 mm Feder und verstellbarer Befestigungskappe (11,5 mm Innendurchmesser Einzelschlitz).
Leistungsbeschreibung
| Allgemeine Beschreibung | Thermocouple with adjustable insertion depth |
|---|---|
| Sensorart | 6.0mm diameter tip |
| Thermoelementtyp | K, J IEC J BS |
| Thermocouple Junction | Grounded tip for fast response |
| Kabellänge | 2, 3m |
| Kabelart | Glassfibre insulated lead with stainless steel overbraid |
| Kern / Stränge | 7/0.2mm |
| Cable Termination | Bare wire or standard plug |
| Max. Temperatur | +350°C |
| Mindest. Temperatur | -60°C |
| Normen erfüllt | IEC-584-3 / BS |
| Bayonet cap | 11.5mm I.D. single slot |
| Steckertyp | Plug |
| Steckergröße | Standard |
| Maße | 25x13mm shim (0.2mm thick) |
| Thread | M6 x 1mm thread |
| Spring | 200mm |
